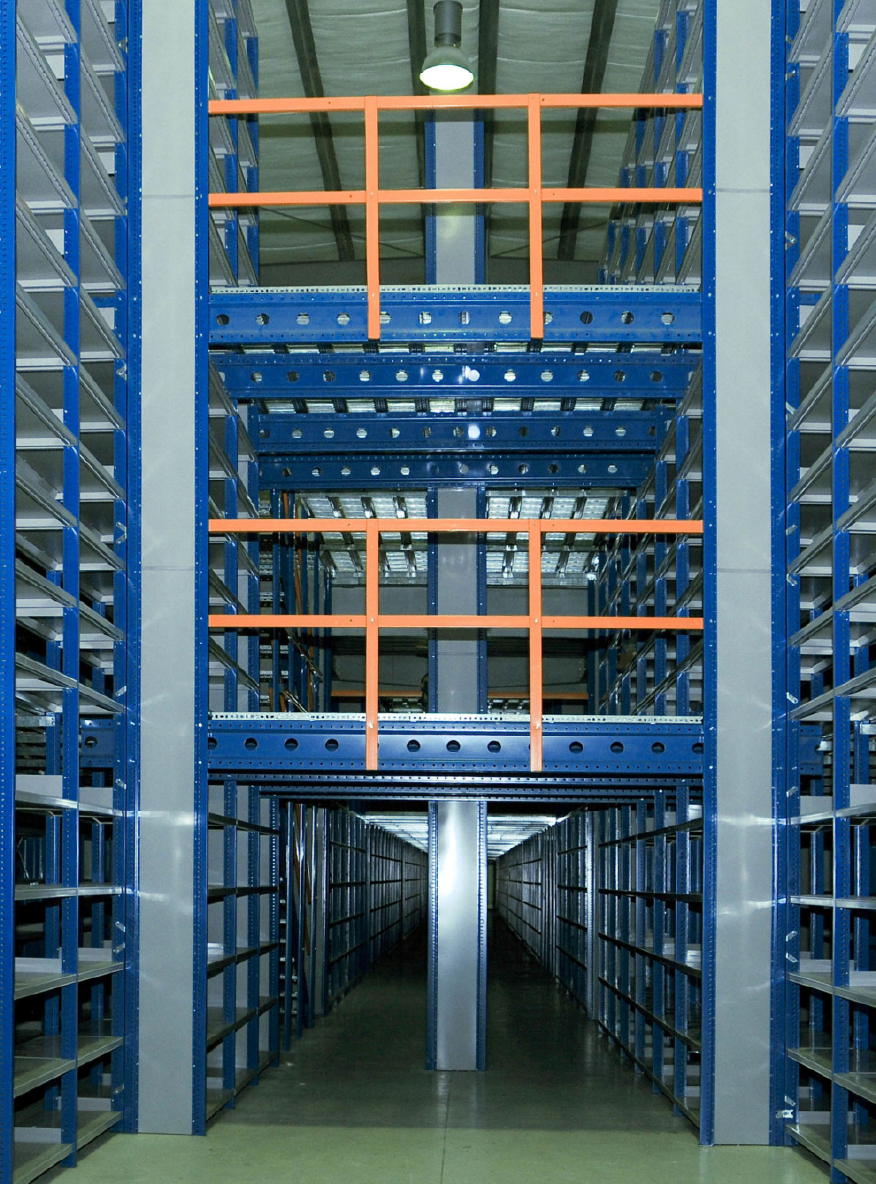

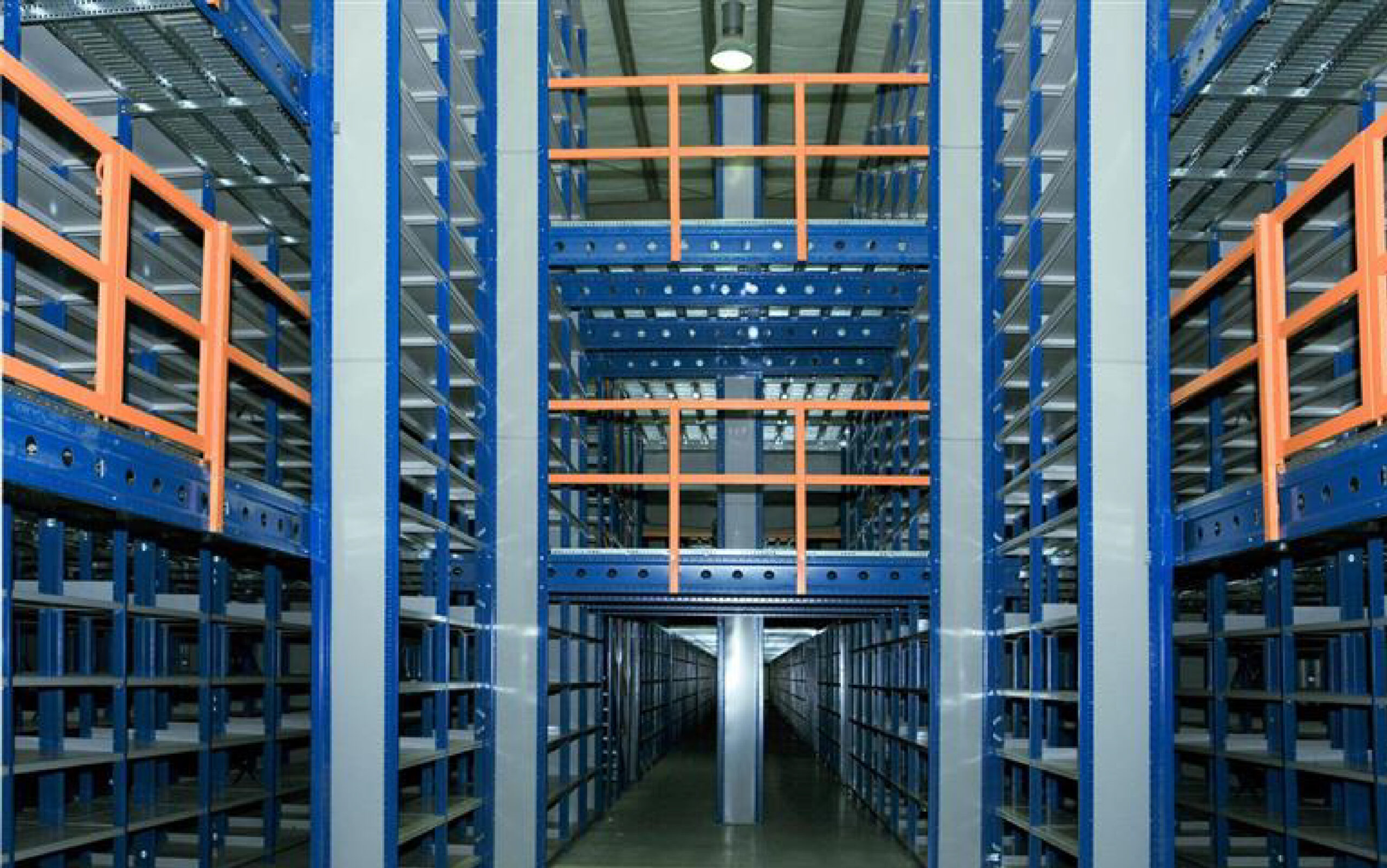

Platform Mezzanine System

The most common use of a mezzanine floor is for storage. This normally means utilising either a combination of short and long span shelving below and above the floor. Many businesses will use one level for one purpose e.g. storage and the 2nd level for an office system by which, there is a possibility to double the height of workable surface in warehouses by using Platform Mezzanine System.

Also, the system can be relocated easily at the desired location, as it does not contain welded accessories. Loads can be designed based on the end uses specifications. It ranges from 300Kg/Sq.m to 450Kg/Sq.m. Also, it can facilitate smooth movement of Hand Pallet Jack or Trolleys for movement of materials on the platform.

This storage system has three essential elements:

Columns: Vertical supports, often made of steel, which transfer the load to the concrete slab below.

Primary Beams: Hot-rolled steel beams that span between columns and support the secondary beams.

Secondary Beams (Joists): Lighter beams resting on the main beams, designed to support the floor decking and the specified load capacity.

Safety Is Not Optional — It’s the Foundation

Safety features are mandatory and crucial for personnel protection and regulatory compliance.

Staircases: Provide safe access and egress between floor levels. They must be adequately sized and designed to applicable building codes.

Guardrails/Handrails: Mandatory around the entire perimeter of the mezzanine not against a wall, including along staircases and near openings. They typically include a main handrail and intermediate rails.

Safety Gates: Used in areas where goods are moved onto the mezzanine (e.g., pallet drop zones), such as pivot or sliding gates, to ensure the opening is guarded at all times. Lifts/Conveyors: Optional accessories that facilitate the movement of goods between levels.

Why platform matters for Modern Businesses

In competitive markets like logistics, retail distribution, manufacturing, and cold storage, efficiency determines profitability. Advantages of this system,

Space Maximization

Cost-Effective

Fast Installation

Flexible & Adaptable.

Improved Efficiency

Factory Universal Shelves Industrial Co, Ltd.

Need Help? Call Us now

+966 12 637 6699

Types and Purpose

Tailored Solutions for Every Industry

Tailored Solutions

From food and beverage warehouses to automotive parts storage and e-commerce fulfilment centres, Long Span racking solutions remain tailored to industry-specific requirements. Temperature conditions, hygiene standards, load weights, and picking frequency all influence the final design.

Conclusion

Arcoma Storage’s racking solutions are engineered to support a wide range of industries and customized storage requirements across the globe. With experience delivering high-quality storage systems to 60+ countries, the company showcases a strong international presence, consistent manufacturing standards, and a commitment to innovation. By combining global reach with tailored design, installation support, and durable materials, Arcoma Storage continues to help businesses optimize warehouse space, enhance safety, and improve operational performance worldwide.
